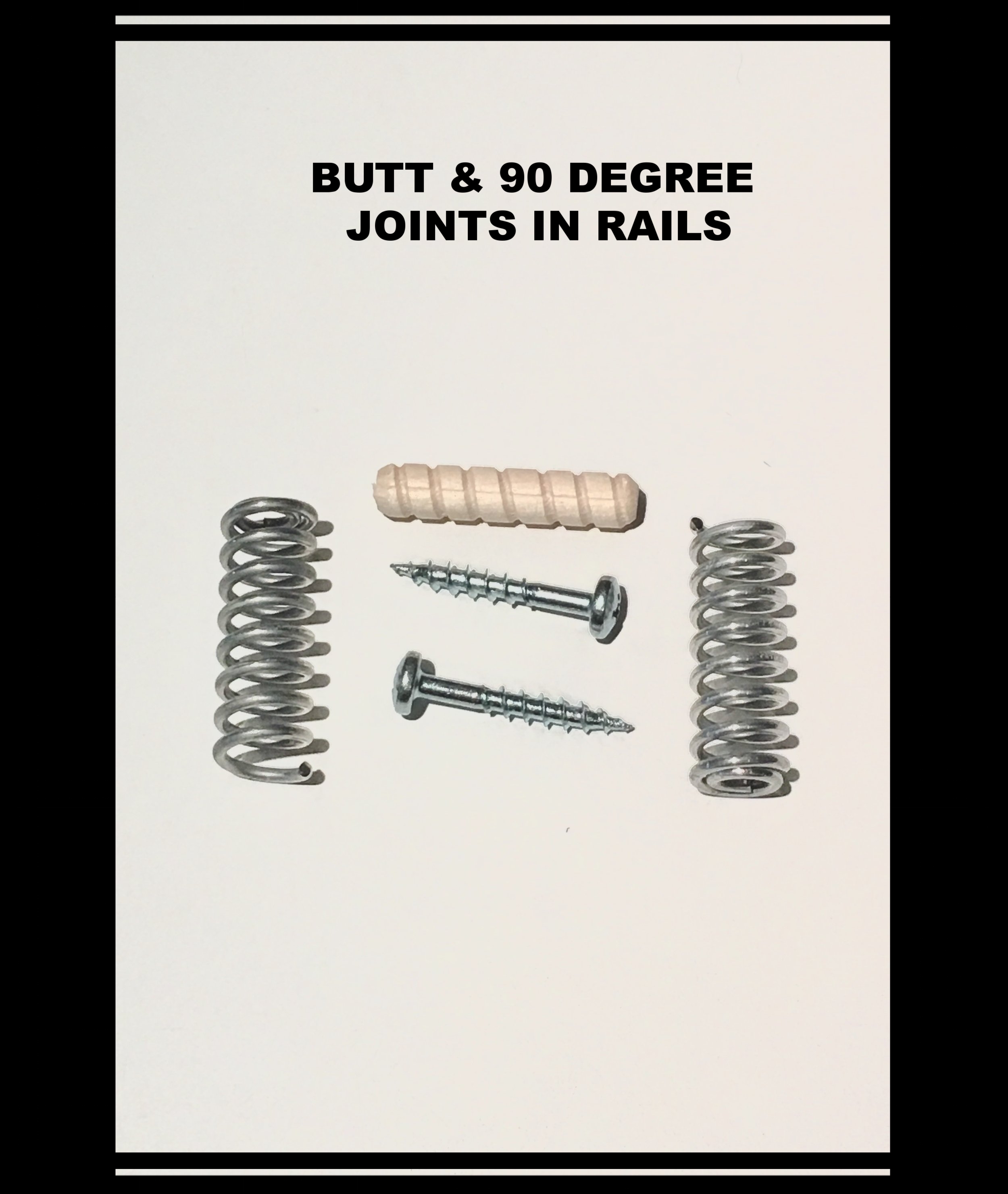

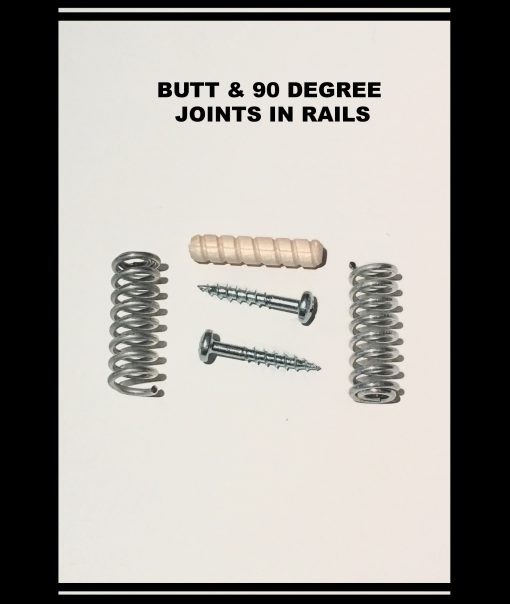

Standard Rail Spring Bolt™ Kit #10





Use for 90 degree rail joints such as wall returns and for butt joints connecting rail to rail fitting. Works well on profiles similar in size to #6010. (2 1/4″ x 2 1/4″)

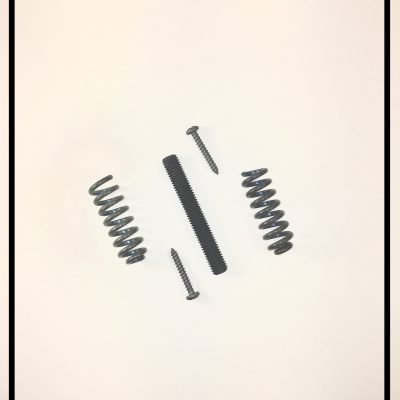

Use another kit called the Super Spring Bolt Kit for joining 2 pieces of rail to make a longer rail.

Requires yellow glue or epoxy. Clean excess glue with water. If using epoxy use vinegar for clean up.


Use 5/8″ drill bit & drill A 1.25″ deep hole in both sides of the Joint. Attach a spring to the bottom of both holes. Apply thick layer of glue to both sides. Insert the pin in either spring and twist together. Once the pieces are together twist 3 more turns to create the clamping pressure needed to make the joint permanent. Align the profiles quickly. Allow several minutes for the glue to set before moving the joint. (Click on VIDEO below)
