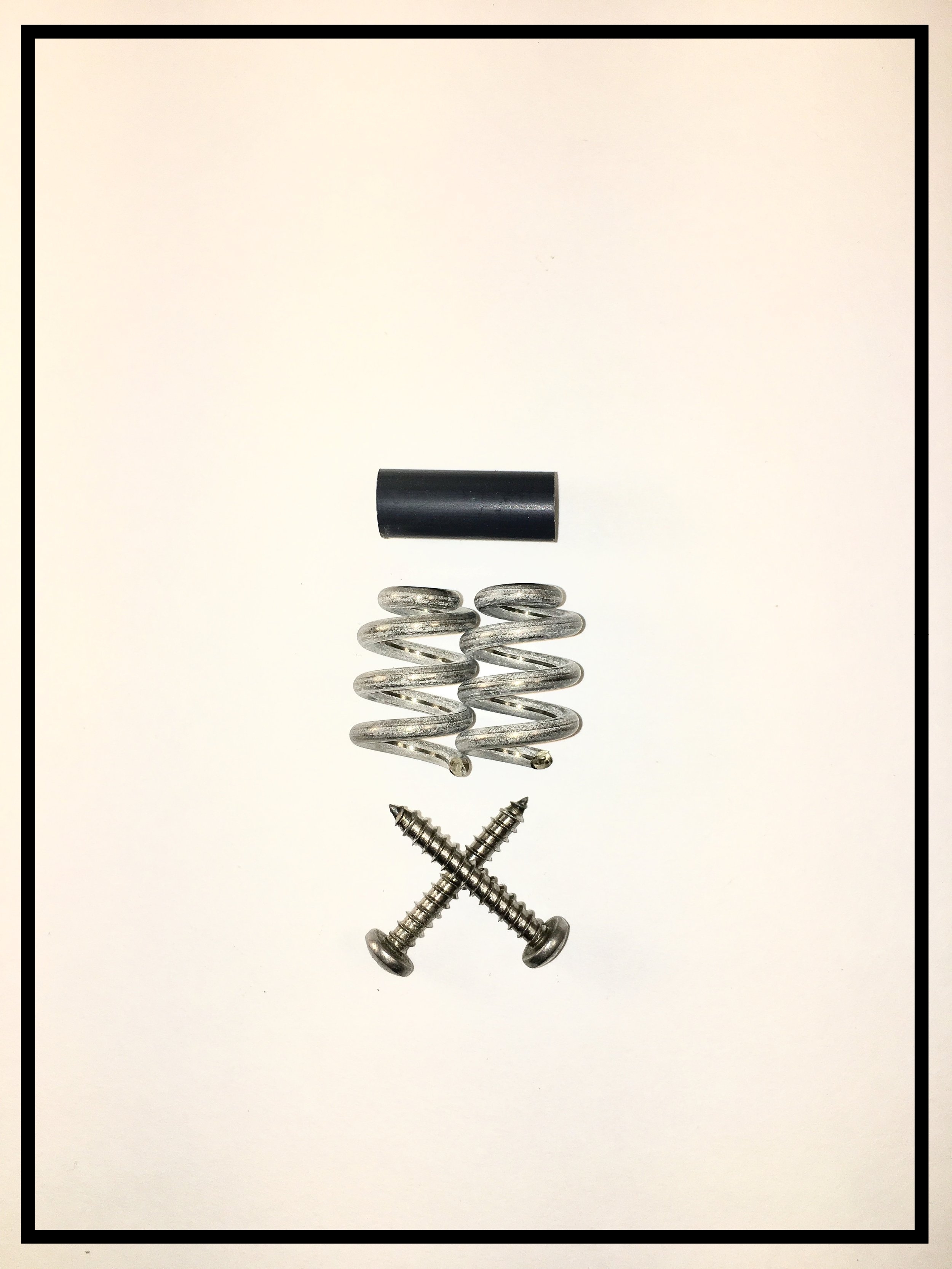

Attach One End Of Rail To Newel Post, Spring Bolt™ Kit #50





Use for attaching 1 end of a rail to the face of a post.

Requires no glue. Epoxy can be used.

Drill a 1″ hole 1″ deep into both sides of the joint. Attach the springs to the bottom of both holes. Insert the guide pin in either spring. Twist together 1 to 1.5 more turns after the wood make contact with each other.
